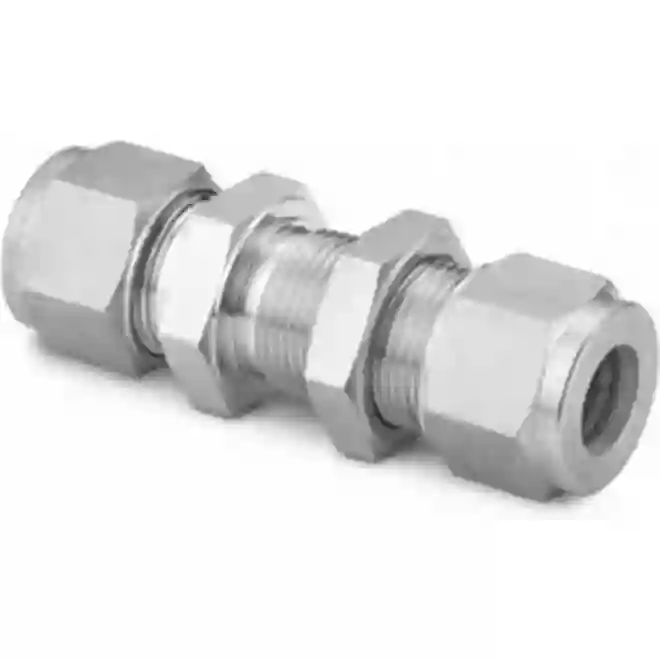

Double bite ferrule fittings

Double bite ferrule fittings

Double bite ferrule fittings are a type of mechanical connection used in tubing systems, commonly found in industries such as hydraulics, pneumatics, and instrumentation. These fittings are known for providing a secure and leak-proof connection between tubes or pipes.

Here’s a detailed overview of their characteristics, applications, and advantages

Characteristics

• Comprises two ferrules (a front ferrule and a back ferrule) that grip the tube.
• The front ferrule forms a seal between the fitting body and the tube.
• The back ferrule provides a grip on the tube, ensuring that the connection remains tight.

Materials:

• Typically made from stainless steel, brass, or other corrosion-resistant materials
• Suitable for high-pressure and high-temperature applications.

Design:

• The fittings are designed to be easy to install and require no special tools for assembly.
• They are reusable, which means the fittings can be disassembled and reassembled without losing their sealing integrity.

Applications

Hydraulic Systems:

• Used in high-pressure hydraulic systems to ensure leak-proof connections.

Pneumatic Systems:

• Provide reliable connections in systems that use compressed air or other gases..

Instrumentation:

• Ideal for connecting instrumentation tubing where precise measurements and reliable performance are critical.

Process Control Systems:

• Employed in chemical processing, oil and gas, and other industries that require robust and durable fittings..

Advantages

Leak-Proof Seal:

• The double ferrule design ensures a tight and reliable seal, minimizing the risk of leaks.

High Pressure and Temperature Resistance:

• Suitable for demanding applications where high pressures and temperatures are common.

Ease of Installation:

• Can be easily assembled and disassembled without the need for special tools.
• The fittings can be reused, which can be cost-effective in the long run..

Versatility:

• Available in various sizes and materials, making them suitable for a wide range of applications.

Vibration Resistance:

• The design provides excellent resistance to vibration, which is crucial in dynamic systems.

Installation Steps

Cut the Tube:

• Ensure the tube is cut squarely and is free of burrs.

Insert the Tube:

• Insert the tube into the fitting until it bottoms out.

Tighten the Nut:

• Tighten the nut by hand, then use a wrench to tighten it further according to the manufacturer’s specifications.

Inspect the Connection:

• Verify that the connection is secure and leak-free.

Double bite ferrule fittings are a reliable and versatile choice for many applications requiring durable and leak-proof connections. Their ease of installation and reusability make them a popular option in various industries..
