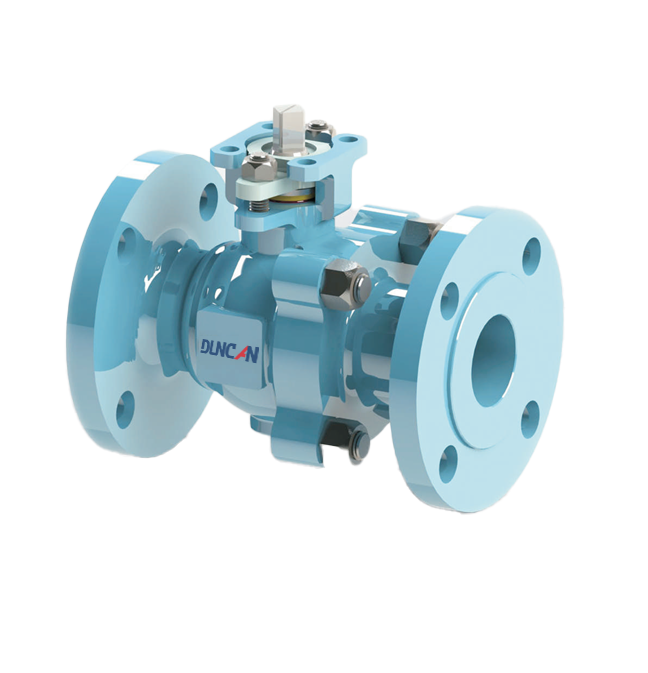

Floating Ball Valves

2 piece, Full Bore/Reduce Bore (Fire safe/Fugitive Emssion)

Parameter        Details

Type:                    2 Piece, Full Bore / Reduced Bore (Fire safe / Fugitive Emission)

Size:                     15–300 mm / 1/2″–12″

Body:                   WCB / CF8 / CF8M / CF3 / CF3M / LCB / CA15

Ball:                     CF8 / CF8M / CF3 / CF3M / LCB / CA15

Seat:                    PTFE / RPTFE / PEEK

Ends:                   Flanged to ANSI B16.5 / BS 10-D / DIN 2501 / IS-1538 / RTJ

Stem:                  ASTM A479 SS 304, SS 316 / ASTM A182 SS410

Operation:       Lever / Gearbox / Pneumatic / Electric Actuator

Temperature:  (-)29°C to (+)260°C

Pressure:          As per Class 150, 300, 600, 900
