Hydraulic Ferrule Fittings

Hydraulic Ferrule Fittings by Gem Engineering

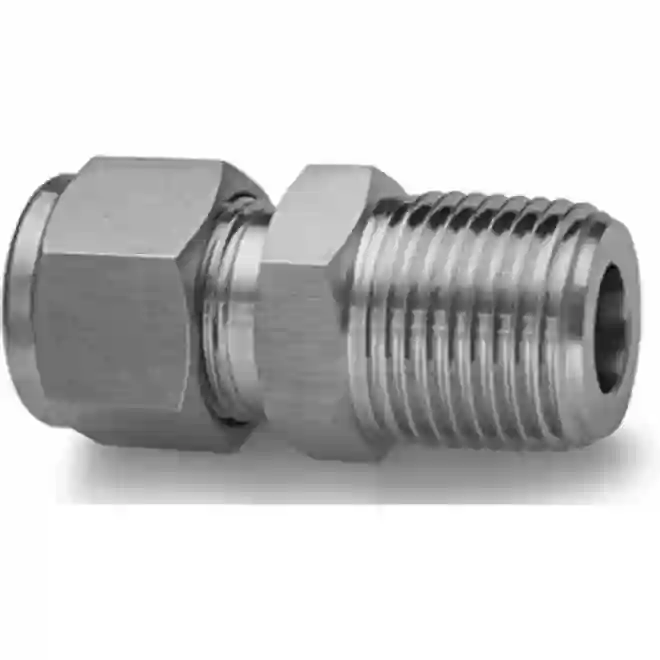

Hydraulic ferrule fittings are a specific type of compression fitting commonly used to connect hydraulic hoses to various components within hydraulic systems.

Gem Engineering, a leading manufacturer of hydraulic fittings, offers high-quality hydraulic ferrule fittings for your fluid power needs. These fittings ensure reliable, leak-proof connections in hydraulic systems that transfer pressurized fluids.Here are the key aspects and features of hydraulic ferrule fittings.

Design and Construction

• A hydraulic ferrule fitting consists of a metal sleeve (ferrule) that is placed over the end of a hydraulic hose.
• The ferrule is typically made from materials such as steel or stainless steel, chosen for their strength and durability under high pressure and in harsh operating conditions.

Sealing Mechanism

• The ferrule fitting utilizes compression to create a tight seal between the hydraulic hose and the fitting body.
• Inside the ferrule, there is often a separate sealing ring or seat (typically made of elastomeric material like rubber or synthetic polymers) that helps to create a leak-proof connection when compressed against the hose and fitting.

Assembly Process

• To assemble a hydraulic ferrule fitting, the hydraulic hose is inserted into the fitting body until it reaches a stop.
• The ferrule is then slid over the hose end and positioned between the hose and the fitting body.
• Using a crimping tool, hydraulic pressure is applied to compress the ferrule around the hose and against the fitting body, thereby securing the hose in place and creating a reliable seal.

Advantages

• Reliable and leak-free connection: The compression and sealing mechanisms of ferrule fittings ensure that hydraulic fluid does not leak under pressure.
• High-pressure capability: Ferrule fittings are designed to withstand high hydraulic pressures commonly encountered in hydraulic systems.
• Durability: Materials used (such as steel or stainless steel) provide strength and resistance to corrosion and wear, ensuring long-term reliability.

Applications

• Ferrule fittings are used in a wide range of hydraulic applications across industries such as construction, agriculture, manufacturing, and transportation.
• They are commonly found in hydraulic systems for machinery like excavators, loaders, cranes, and agricultural equipment where reliable fluid transfer is critical.

Considerations

• Proper selection of ferrule fittings involves consideration of factors such as hose size, operating pressure, fluid compatibility, and environmental conditions.
• Regular inspection and maintenance of ferrule fittings are important to ensure they remain securely attached and leak-free over time.

In summary, hydraulic ferrule fittings are essential components in hydraulic systems, providing secure and leak-proof connections between hoses and other hydraulic components. Their robust design and reliable performance make them a preferred choice in demanding industrial applications.
