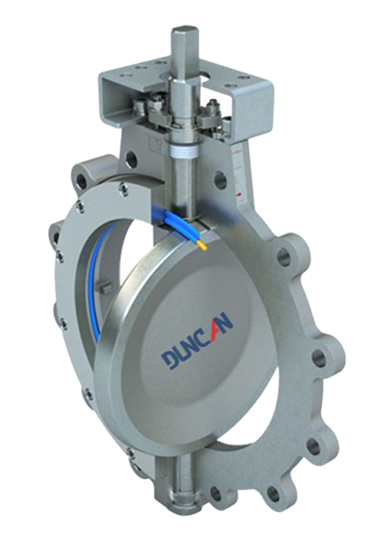

Triple Offset Butterfly Valve

Engineered for high-performance industrial applications, our Triple Offset Butterfly Valves deliver precise flow control with superior sealing capabilities. Available in both soft and metal seated variants, these valves are designed to perform reliably under extreme pressure and temperature conditions.

Key Specifications

Type: Triple Offset – Soft & Metal Seated

Size Range: 50 mm to 1000 mm (2″ to 40″)

Body Material Options: WCB, CF8, CF8M, CF3, CF3M, LCB, CA15

Disc Material Options: WCB, CF8, CF8M, CF3, CF3M, LCB, CA15

Seat Type: SS316 + Graphite / Full Metal

Stem Material: 17-4-PH SS (ASTM A564 Type 630) / SS410 (ASTM A479)

Operation Modes: Manual (Lever/Gearbox), Pneumatic Actuator, Electric Actuator

Temperature Range:

Soft Seated: –40°C to +200°C

Metal Seated: –100°C to +400°C

Pressure Rating: ASME Class 150 / 300 / 600 / 900 / 1500 / 2500
