Trunion mounted Ball Valve

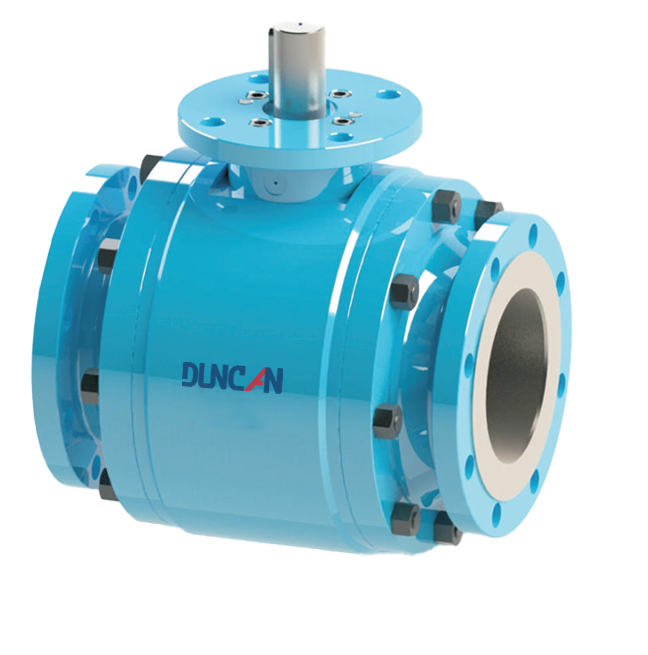

Trunnion Mounted Ball Valve – Full Bore / Reduced Bore

Crafted for demanding industrial applications, the Trunnion Mounted Ball Valve ensures stable performance under high pressure. With a robust design available in both full and reduced bore options, it offers superior sealing, low torque operation, and long service life.

Key Specifications

• Type: Trunnion Mounted, Full Bore / Reduced Bore (2 or 3 Piece Design)
• Size Range: 50 mm to 300 mm (2″ to 12″)
• Body Material: WCB, CF8, CF8M, CF3, CF3M, LCB, CA15
• Ball Material: CF8, CF8M, CF3, CF3M, LCB, CA15
• Seat Material: Nylon, Viton
• End Connections: Flanged as per ANSI B16.5 / BS 10-D / DIN 2501 / IS-1538 / RTJ
• Stem Material: ASTM A479 SS304, SS316 / ASTM A182 SS410
• Operation Modes: Manual (Lever/Gearbox), Pneumatic Actuator, Electric Actuator
• Temperature Range: –29°C to +180°C
• Pressure Rating: ASME Class 150 / 300 / 600 / 900

Trusted for use in oil & gas, petrochemicals, power generation, and water treatment systems, this valve ensures reliable shutoff and control in critical flow systems.
